Welcome to the world of Diamond and CBN Industrial Tools-Zhengzhou Shine Abrasives Co.,Ltd from China.

|
| Place of Origin: | CHINA |
| Brand Name: | Shine Abrasives |
| Certification: | ISO |
| Model Number: | 1A1 |
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiate |
| Packaging Details: | 1 pcs in one carton or wood box |
| Delivery Time: | 5 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 PCS per week |
| Shape: | 1A1 Straight | Diameter: | 600mm |
|---|---|---|---|
| Bond Type: | Resin | Grit Size: | D126 |
| Diamond Rim Size: | 40x10mm | HS Code: | 6804211000 |
| Highlight: | 600mm Cbn Grinding Wheel For Carbide,30kg/PC Cbn Grinding Wheel,HVOF Sprays cbn abrasive wheels |
||

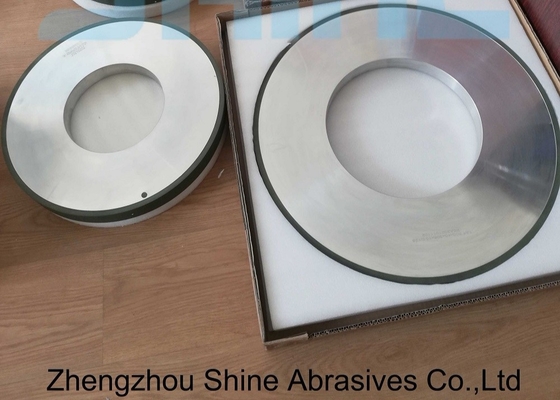

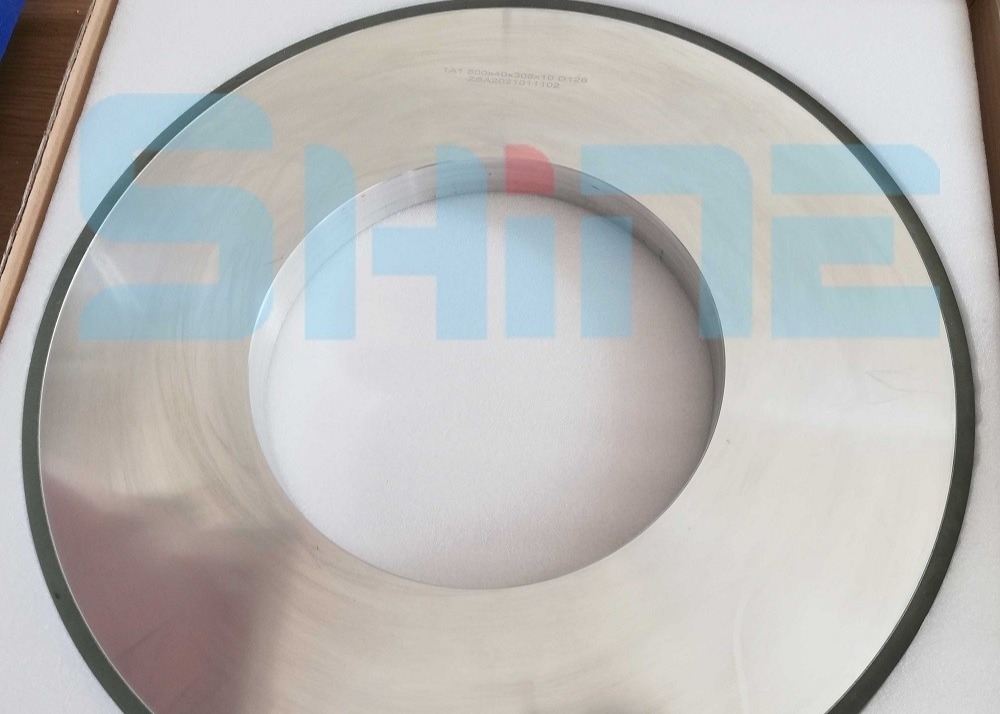

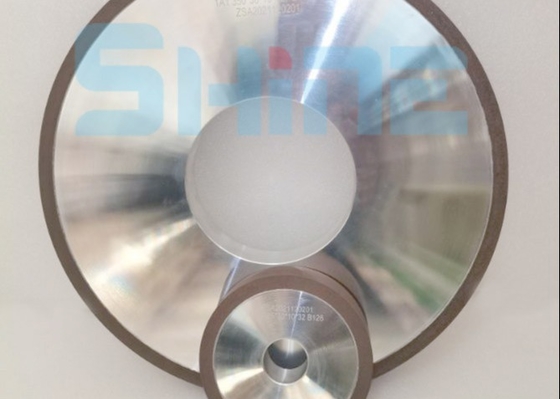

1A1 Diamond Wheels 600mm For Carbide HVOF Sprays Coating Grinding
Shine Abrasives Resin bond 1A1 Diamond Wheels with 600mm out diameter.
Mainly used for grinding Carbide HVOF Sprays Coating
cylindrical grind thermal sprayed HVOF coatings
HVOF is used on materials such as:
metals
alloys
ceramics
composites
coatings are typically used to deposit wear and corrosion resistant coatings on materials that are going to be used in jobs
that are particularly tough on parts, in industries such as the oil and gas industry.
The drawing of Shine Abrasives 1A1 Diamond Wheels 600mm For Carbide HVOF Sprays Coating Grinding
Main sizes form of Shine Abrasives 1A1 Diamond Wheels 600mm For Carbide HVOF Sprays Coating Grinding
| Abrasive Material:Diamond | Bond Type:Resin |
| CBN Grit:D126 | Wheel Diameter: 600mm |
| Wheel Bore:305mm | Wheel Weight:30kgs/PC |
| Wheel Body Material:Aluminum | Diamond Ring Width:10mm |
| Wheel Thickness:40mm | Concentrate: 125% |
Other standard sizes also are available as requested.
Features of Shine Abrasives 1A1 Diamond Wheels 600mm For Carbide HVOF Sprays Coating Grinding
Wheels with long time working for HVOF grinding.
Wheels are free cutting,fast grinding speed.
Good finish after grinding
Resin bond Wheels are easy to dressing.
Application picture for reference.
