Place of Origin: | CHINA |
Brand Name: | Shine Abrasives |
Certification: | ISO |
Model Number: | 1A1R |
Minimum Order Quantity: | 5 PCS |
---|---|
Price: | Negotiate |
Packaging Details: | 5 pcs in one paper box |
Delivery Time: | 5 working days |
Payment Terms: | L/C, T/T |
Supply Ability: | 5000 PCS per week |
Shape: | 1A1R | Bond: | Metal |
---|---|---|---|
Diameter: | 200mm | Grit Size: | D151 |
Thickness: | 1.2mm | HS Code: | 8207901000 |
Highlight: | 200mm Diamond Cutting Wheel For Glass,D151 Diamond Cutting Wheel,Glass Cutting Diamond Cutting Wheel |

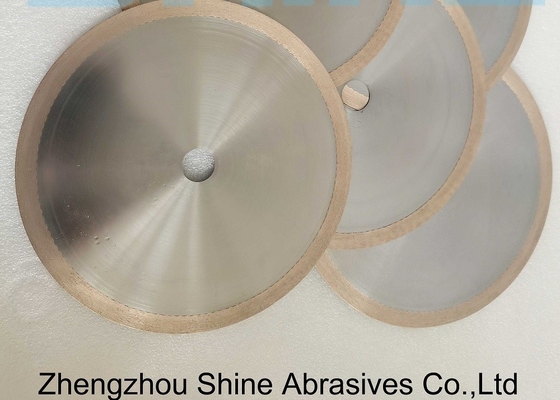

1A1R Diamond Wheels 200mm Diameter 1mm Thickness For Quartz Cutting
Shine Abrasives 1A1R Diamond Wheels 200mm diameter Metal Bond For Glass Cutting And Grinding
the wheel thickness is 1.0mm,and the hole is 20mm.
Also mainly used for tile,ceramics,quartz.etc.
Diamond cutting disc is a metal bond, adding some diamonds (or CBN abrasive sintering),
under a certain temperature, pressure state, vacuum, through various processing methods of processing precision,
the characteristics of diamond abrasive grains are strong controllability, high performance,
Particularly suitable for cutting optical and electronic parts slots.
The products are mainly used in the processing of optoelectronic information materials
(glass, ceramics, magnetic materials, fine grains).
The diamond cutting blade has the characteristics of high rigidity,
and the blade is in the cutting process to ensure the verticality, cutting.
Drawing of Shine Abrasives 1A1R Diamond Wheels 200mm Diameter 1mm Thickness For Quartz Cutting
Main sizes form of Shine Abrasives 1A1R Diamond Wheels 200mm Diameter 1mm Thickness For Quartz Cutting
Abrasive Material:Diamond | Bond Type:Metal |
Diamond Grit:D126 | Wheel Diameter: 8inch 200mm |
Wheel Bore:20mm | Rim width:10mm |
Wheel Thickness:1.0mm | Wheel core: Steel |
Other standard sizes also are available as requested.
Features of Shine Abrasives 1A1R Diamond Wheels 200mm Diameter 1mm Thickness For Quartz Cutting
Fine diamond mesh and continuous rim for smooth cutting of Quartz without chipping
Attention:Workers should ensure that you are fully informed on the safe operation of abrasive cutting and grinding wheels
