Welcome to the world of Diamond and CBN Industrial Tools-Zhengzhou Shine Abrasives Co.,Ltd from China.

|
| Place of Origin: | CHINA |
| Brand Name: | Shine Abrasives |
| Certification: | ISO |
| Model Number: | 1A1 |
| Minimum Order Quantity: | 2 PCS |
|---|---|
| Price: | Negotiate |
| Packaging Details: | 1 pcs in one paper box |
| Delivery Time: | 5 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 PCS per week |
| Shape: | 1A1 Flat | Diameter: | 6 Inch 150mm |
|---|---|---|---|
| Bond Type: | Resin | Grit Size: | CBN800# |
| Diamond Rim Size: | 13x5mm | HS Code: | 6804221000 |
| Highlight: | 1A1 Flat CBN Wheel,6 Inch Flat CBN Wheel,150mm Flat CBN Wheel |
||

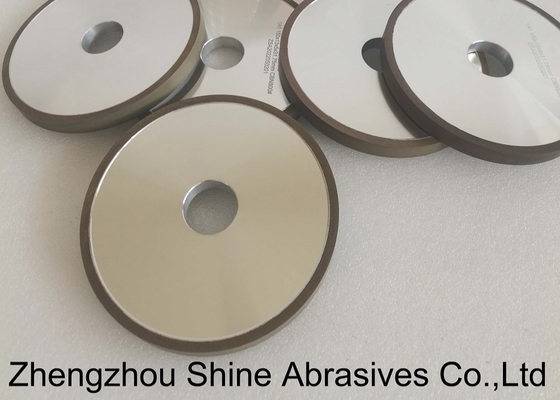

6 Inch 150mm 1A1 Flat CBN Wheel For HSS Tools Grinding And Sharpening
Shine Abrasives 1A1 CBN Wheels 6 Inch 125mm
Mainly used for grinding High Speed Tools(HSS) or sharpening.
CBN APPLICATIONS:
Grinding Steel: Grind most all grades of steel, but must have hardness of 45Rc or above to be ground effectively with CBN.
There are cases that soft steels are ground with CBN but many different factors will have to be addressed. HSS, A series, T series and most stainless steels are ground effectively and profitable with CBN resin bond wheels.
When Grinding Iron: This type of wheel does not react to iron
Materials:
Harden steels
Tool steels
Stainless steels
Cast irons.
The drawing of Shine Abrasives 6 Inch 150mm 1A1 Flat CBN Wheel For HSS Tools Grinding And Sharpening
Main sizes form of Shine Abrasives 6 Inch 150mm 1A1 Flat CBN Wheel For HSS Tools Grinding And Sharpening
| Abrasive Material:CBN | Bond Type:Resin |
| CBN Grit:800# | Wheel Diameter: 6inch 150mm |
| Wheel Bore:31.75mm | Wheel Weight:1.0kgs/PC |
| Wheel Thickness:13mm | Concentrate: 100% |
Other standard sizes also are available as requested.
Question
What's the safe working speed for resin bond CBN wheel?
The following are general recommendations:
Resin Bond max speed is 40m/s
