Welcome to the world of Diamond and CBN Industrial Tools-Zhengzhou Shine Abrasives Co.,Ltd from China.
 |
| Place of Origin: | China |
| Brand Name: | Shine Abrasives |
| Certification: | ISO |
| Model Number: | 4V2 1A1 14A2 |
| Minimum Order Quantity: | 2 pcs |
|---|---|
| Price: | FOB |
| Packaging Details: | one in paperbox |
| Delivery Time: | 5 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 PCS in one week |
| Dimension: | 200mm-700mm | Product Shape: | Round, Cylindrical |
|---|---|---|---|
| Shape: | 6A1 | Weight: | 2.5 Pounds |
| Concentration: | Customized | Grit: | 50~30000 |
| Application: | Centerless Grinding | Wheel Thickness: | 1 Inch |
| Bond: | Customized | Bond Type: | Vitrified |
| Grit Size: | 46 | Diameter: | Customized |
| Hole Size: | 1.25 Inches | Structure: | 6 |
| Max Speed: | 3000-6000 RPM | ||
| Highlight: | Resin Bond Centerless Grinding Wheel,Diamond Centerless Grinding Wheel,Top Quality Centerless Grinding Wheel |
||

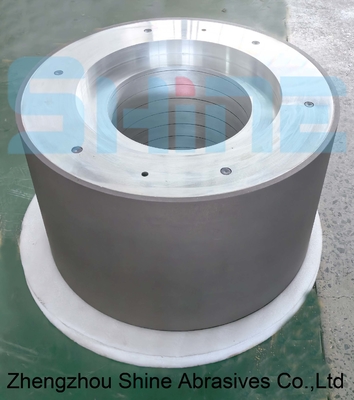

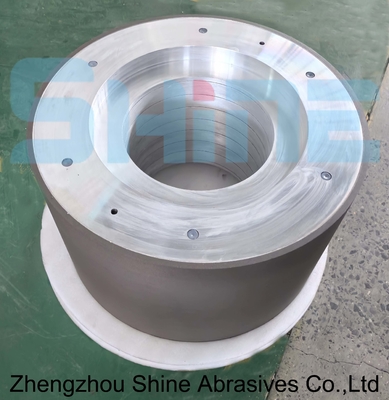

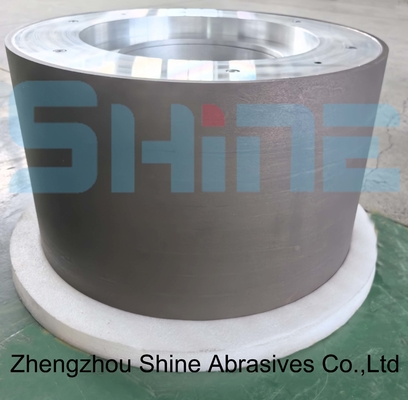

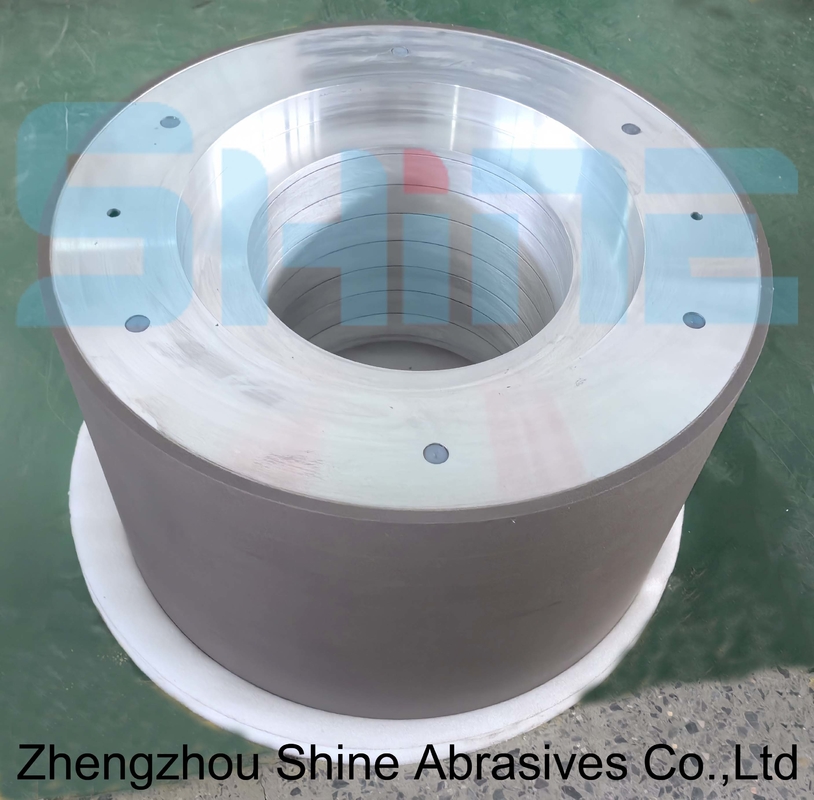

Centerless Grinding Wheel is mainly used in external grinding, internal grinding, surface grinding, slotting, forming grinding and other grinding processes of cemented carbide, precision ceramics, magnetic materials, thermal spraying alloy and other materials; It has the characteristics of good self sharpening, high grinding efficiency, low surface roughness of machined workpiece, less heating and not easy to burn workpiece.
|
Model
|
Universally Spec.
|
|
|
1A1
|
1A1 D*T*H*X
|
|
|
D
|
125~600
|
|
|
T
|
50~350
|
|
|
H
|
75, 127, 203
|
|
|
X
|
5, 10
|
|
|
6A1
|
6A1 D*T*H*X
|
|
|
D
|
125~600
|
|
|
T
|
50~350
|
|
|
H
|
75,127,203
|
|
|
X
|
5, 10
|
|
|
9A1
|
9A1 D*T*H*X
|
|
|
D
|
125~600
|
|
|
T
|
50~350
|
|
|
H
|
75,127,203
|
|
|
X
|
5, 10
|
|
Centerless grinding wheel is widely used for Bar grinding, Bearing Race OD ring grinding, Auto part grinding e.g. piston pins.
*Efficient batch external grinding.
*High roundness and cylindricity of workpiece and good consistency of dimension.
*Good surface finish after fine grinding.
*Used for rough grinding, semi-fine grinding and fine grinding.
