Welcome to the world of Diamond and CBN Industrial Tools-Zhengzhou Shine Abrasives Co.,Ltd from China.
 |
| Place of Origin: | China |
| Brand Name: | Shine Abrasives |
| Certification: | ISO |
| Model Number: | 4V2 1A1 14A2 |
| Minimum Order Quantity: | 2 pcs |
|---|---|
| Price: | FOB |
| Packaging Details: | one in paperbox |
| Delivery Time: | 5 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 PCS in one week |
| Wheel Concentration: | Varies | Grain: | Mono-crystalline, Polycrystalline |
|---|---|---|---|
| Usage: | Sharpening,grinding | Wheel Edge: | Straight, Beveled, Radius |
| Arbor Hole: | Varies | Maximum Speed: | 6,000-12,000 RPM |
| Life Span: | Long | Warranty: | Customized |
| Style: | 1V1 | Speed: | High |
| Cbn Rim Size: | 6x15mm | Diamond Rim Size: | 10x5mm |
| Viscosity: | Standrad,good,as Required | Advantages: | High Working Efficiency |
| Wheel Bond: | Resin | ||
| Highlight: | Resin Bond Diamond Grinding Wheel,ODM Diamond Grinding Wheel,Sharpening Carbide Tool Diamond Grinding Wheel |
||

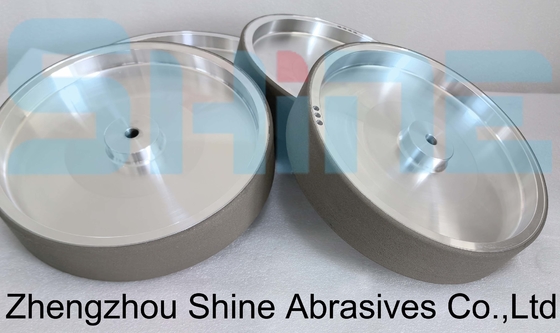

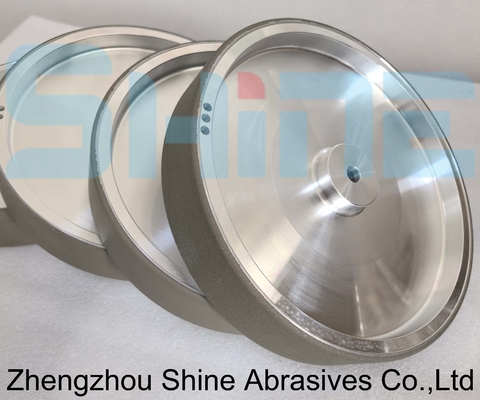

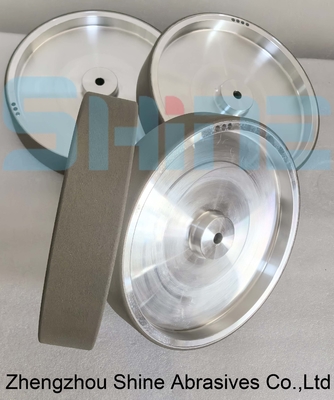

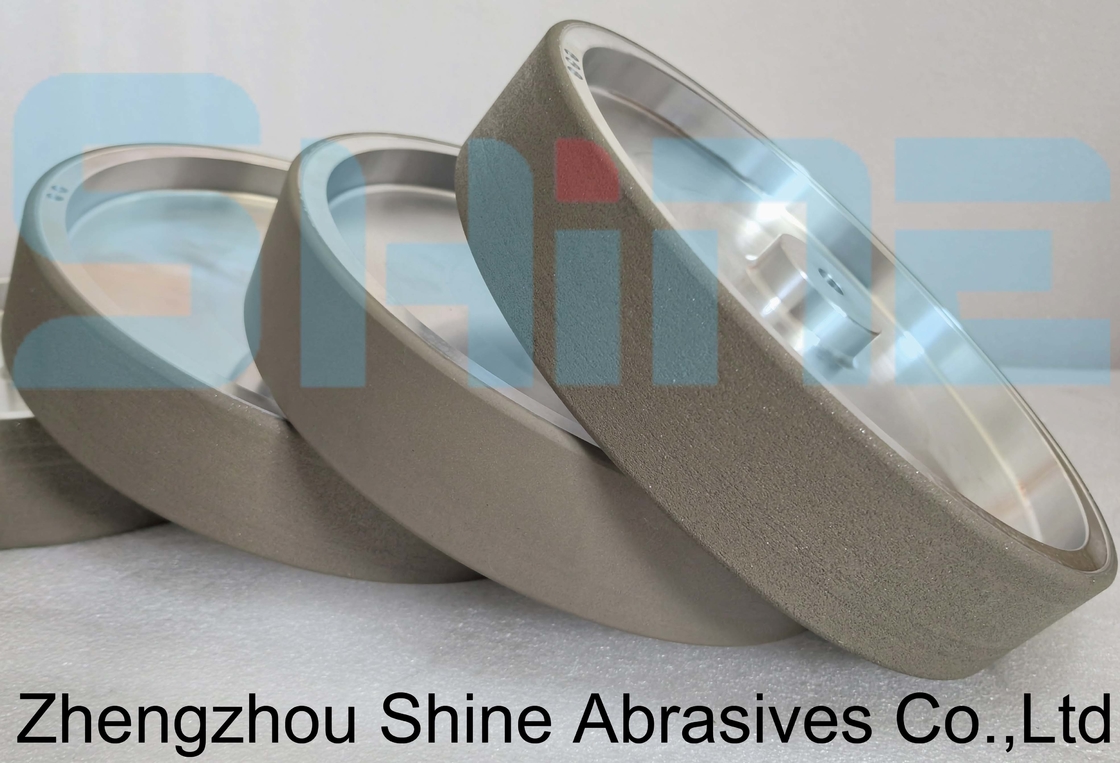

Resin bond diamond grinding wheel is suitable for grinding metal and non-metal hard and brittle materials with low iron content,such as cemented carbide,high alumina porcelain, optical glass, agate gemstone, semiconductor material, ceramics, stone, etc.
|
Type:
|
1A1 Flat resin bond diamond grinding wheel
|
|
Concentration:
|
50%,75%,125%,150%
|
|
Mesh
|
46#,60#,80#,100#,120#(coarse grinding);
120#,150#,180#,200#,240#(medium grinding);
280#,320#,400#,500#,600#(fine grinding);
800#,1000#,1200#,1500#,2000#,3000#(polishing)
|
|
Specification:
|
D75-H10-T5-X10 D150-H19-X5-T5
D125-T10-X10-H20/31.75 D100-T10-X10-H20/31.75
D175-H127-X4-T5 D250-H40-X10-T3
D300-H127-X10-T40 D350-H127-T20-X10
D400-H127-T40-X10 D500-H203-X10-T32
Specification sizes can be customized
|
|
Application:
|
hard alloy,high alumina porcelain,optical glass agate gemstone, semiconductor material,ceramics,stone,etc
|
Contact Person: Lenny Li
Tel: 008615003895611
