Welcome to the world of Diamond and CBN Industrial Tools-Zhengzhou Shine Abrasives Co.,Ltd from China.

|
| Place of Origin: | China |
| Brand Name: | Shine Abrasives |
| Certification: | ISO |
| Model Number: | 4V2 1A1 14A2 |
| Minimum Order Quantity: | 2 pcs |
|---|---|
| Price: | FOB |
| Packaging Details: | one in paperbox |
| Delivery Time: | 5 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 PCS in one week |
| Hs Code: | 6804221000 | Usage: | Industrial |
|---|---|---|---|
| Maximum Speed: | 6000 RPM | Wheel Quality: | High |
| Hole Diameter: | Customized | Grits: | #40~#3000 |
| Country Of Origin: | China | Style: | 1V1 |
| Wheel Hole Number: | Varies | Wheel Face Width: | Varies |
| Manufacturer: | XYZ Company | Wheel Hardness: | Medium |
| Wheel Diameter: | 6 Inches | Application: | Grinding And Polishing |
| Abrasive: | Diamond,Super Abrasive,CBN | ||
| Highlight: | Diamond Grinding Resin Cup Wheel,Circular Saw Blade Resin Cup Wheel,Carbide Tool Resin Cup Wheel |
||

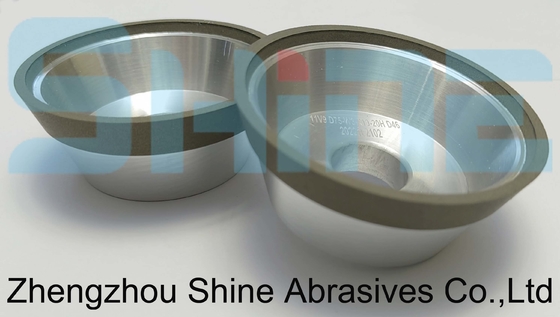

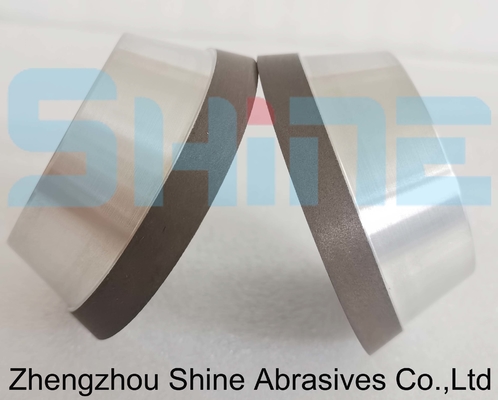

Resin bond diamond grinding wheel suits to grind carbide, hard steel, hard alloy, all kinds of serrated teeth, sharpen edges, milling cutter, Suitable for the surface grinding and outer circular grinding of cemented carbide measuring tools, tungsten steel, alloy steel.Also suit for grinding high-alumina porcelain, optical glass, agate gem, semiconductor material, stone, etc.
|
Shape
|
D(mm)
|
T(mm)
|
H(mm)
|
X(mm)
|
W(mm)
|
|
11V9 |
100
|
25-40
|
16, 20, 31.75, 32
|
2-6
|
3-10
|
|
125
|
25-40
|
16, 20, 31.75, 32
|
2-6
|
3-10
|
|
|
150
|
25-40
|
16, 20, 31.75, 32
|
2-6
|
3-10
|
|
| Wheel Shape |
4A2, 12A2, 4BT9, 12V2, 11V2, 12V2, 6A2, 14A1, 12V9, 3V1, 11A2
|
||||
|
Any nonstandard size and grits size can customised (tell us size or drawing is enought)
|
|||||
1. High cutting efficiency, good self-sharpening, less blocking, reducing the grinding burn occurs when the phenomenon of work.
2. Good flexibility will help to improve the surface roughness, mainly used for rough grinding, semi-fine grinding, polishing and other processes.
3. Compared to conventional silicon carbide , resin diamond wheel has good material removal rates, longer wheel life and lower grinding costs.
4. Resin bond diamond wheels generally remove material up to 10 times faster than metal bond wheels.
Contact Person: Lenny Li
Tel: 008615003895611
