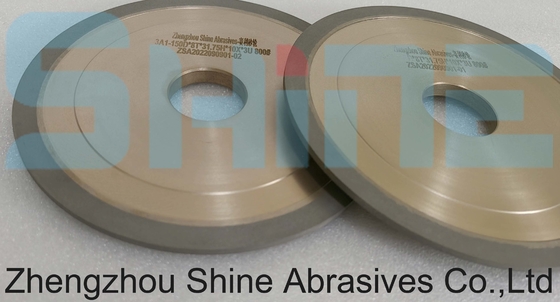

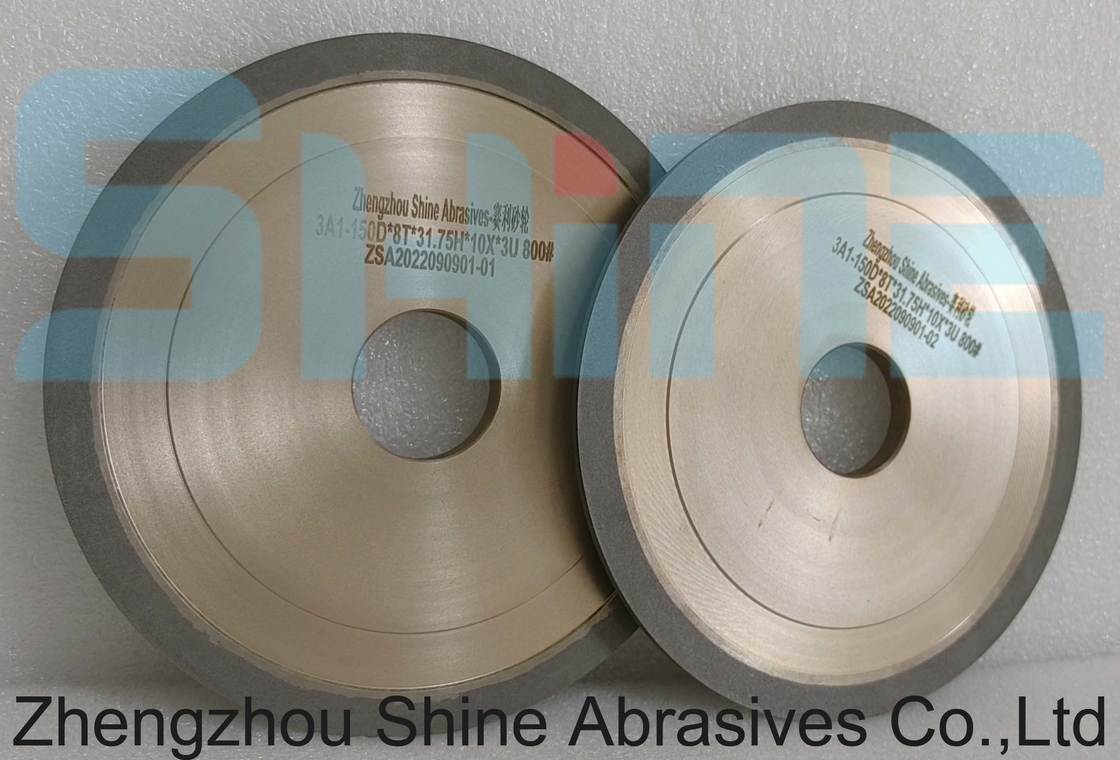

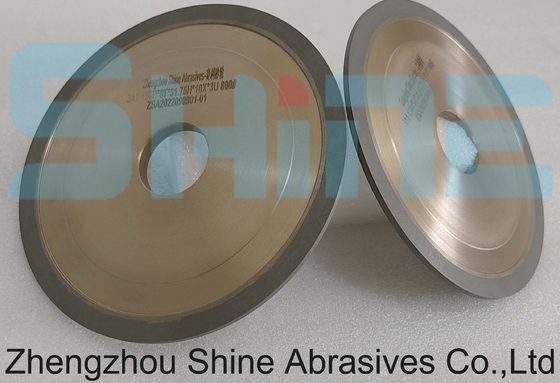

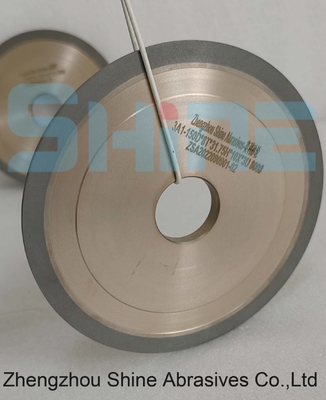

Welcome to the world of Diamond and CBN Industrial Tools-Zhengzhou Shine Abrasives Co.,Ltd from China.
 |
| Place of Origin: | China |
| Brand Name: | Shine Abrasives |
| Certification: | ISO |
| Model Number: | 4V2 1A1 14A2 |
| Minimum Order Quantity: | 2 pcs |
|---|---|
| Price: | FOB |
| Packaging Details: | one in paperbox |
| Delivery Time: | 5 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 PCS in one week |
| Maximum Operating Speed: | 6000-12000 RPM | Wheel Hole Number: | Varies |
|---|---|---|---|
| Wheel Bore: | Varies | Life Span: | Long |
| Abarasive Material: | Diamond | Oem: | Available |
| Wheel Grade: | Fine | Speed: | High |
| Viscosity: | As Required | Grit Range: | Coarse To Fine |
| Wheel Grit: | 240-700 | Feature: | High Efficiency, Long Life |
| Max Operating Speed: | Customized | Wheel Diameter: | 4 Inches, 6 Inches, 8 Inches |
| Maximum Speed: | 6000 RPM | ||
| Highlight: | Tungsten Carbide CNC Wheels,Quartz CNC Wheels,Alloys CNC Wheels |
||
Resin Bond CBN wheels are used for double-disc surface grinding of the inner and outer race surfaces of bearings, transmission gears, washers, tappet shims, compressor part, vane pump vanes and rotors, precision springs, etc. These are applicable to a wide range of materials, such as high-speed tool steel, die steel, bearing steel, carbon tool steel, spring steel, cast iron, sintered ferrous metal, etc.
|
Shape
|
D(mm)
|
T(mm)
|
H(mm)
|
X(mm)
|
W(mm)
|
|
1A1 |
100
|
25-40
|
16, 20, 31.75, 32
|
2-6
|
3-10
|
|
125
|
25-40
|
16, 20, 31.75, 32
|
2-6
|
3-10
|
|
|
150
|
25-40
|
16, 20, 31.75, 32
|
2-6
|
3-10
|
|
| Wheel Shape |
4A2, 12A2, 4BT9, 12V2, 11V2, 12V2, 6A2, 14A1, 12V9, 3V1, 11A2
|
||||
|
Any nonstandard size and grits size can customised (tell us size or drawing is enought)
|
|||||
Our Cut-Off blades have below advantages:
