Welcome to the world of Diamond and CBN Industrial Tools-Zhengzhou Shine Abrasives Co.,Ltd from China.
 |
| Place of Origin: | China |
| Brand Name: | Shine Abrasives |
| Certification: | ISO |
| Model Number: | 4V2 1A1 14A2 |
| Minimum Order Quantity: | 2 pcs |
|---|---|
| Price: | FOB |
| Packaging Details: | one in paperbox |
| Delivery Time: | 5 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 PCS in one week |
| Abrasive Material: | Cubic Boron Nitride (CBN) | Usage: | Dry Or Wet |
|---|---|---|---|
| Material: | Cubic Boron Nitride | Wheel Thickness: | 1 Inch |
| Size: | 5 | Bond: | Electroplated |
| Arbor Hole Size: | 1 Inch | Wheel Diameter: | 6 Inches |
| Arbor Size: | 1 Inch | Wheel Bore: | 1/2 Inch |
| Package: | 1pc/box | Bond Type: | Resin |
| Outer Diameter: | 200mm | Manufacturer: | CBN Wheels |
| Hardness: | As Required,Standard | ||
| Highlight: | Sharpening CBN Profile Grinding Wheels,High Alloy Bandsaw Grinding Wheels,Electroplated CBN Profile Grinding Wheels |
||

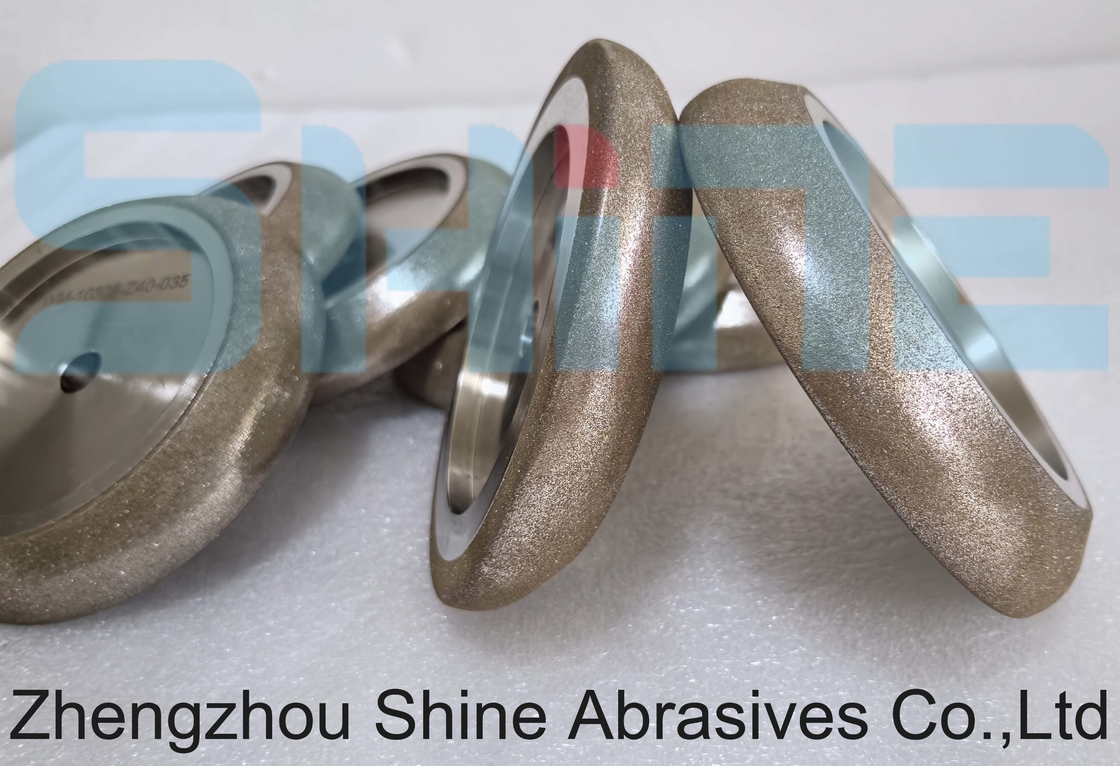

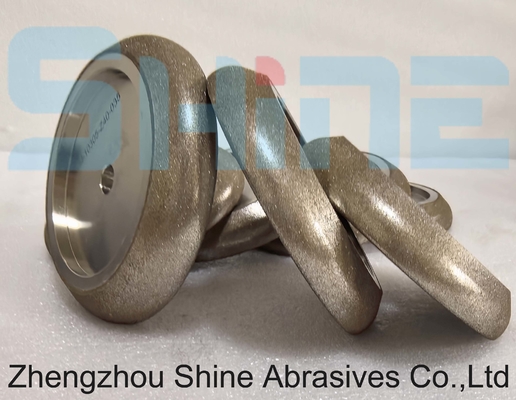

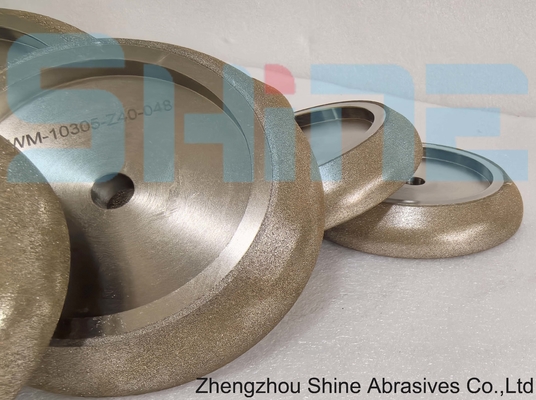

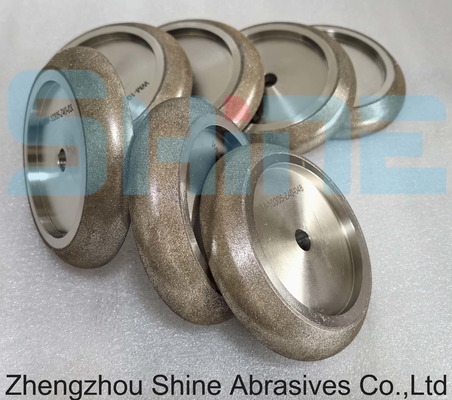

Electroplated CBN grinding wheel is specially used for band saw grinding. The electroplating process on the surface of CBN plated steel substrate can obtain precision, ensure high-quality tooth shape and sharpen the band saw blade.
| Product Name: | Electroplated CBN sharpening band saw wheel |
| Model: | 5 inch / 6 inch / 8 inch... |
| Material: | high quality cubic boron nitride |
| material: | steel |
| Band saw angle: | WM 10/30,WM 13/29,WM 12/28,WM 9/29,WM 6/30,WM 7 / 39.5,Lenox 10/30 |
| Function: | used for grinding and passivating the band saw blade to make the band saw blade sharper |
| We can customize CBN grinding wheel according to the needs of customers | |
The characteristics of different angle band saw grinding wheels are as follows
10 / 30: common wheel profile, cork and hardwood band saw can be used;
9 / 29: band saw or hardwood band saw for winter wood cutting;
13 / 29: band saw or cork band saw for summer wood cutting;
4 / 32: band saw for very hard wood cutting;
7 / 34: for hardwood cutting band saw
