Welcome to the world of Diamond and CBN Industrial Tools-Zhengzhou Shine Abrasives Co.,Ltd from China.

|
| Place of Origin: | China |
| Brand Name: | Shine Abrasives |
| Certification: | ISO |
| Model Number: | 4V2 1A1 14A2 |
| Minimum Order Quantity: | 2 pcs |
|---|---|
| Price: | FOB |
| Packaging Details: | one in paperbox |
| Delivery Time: | 5 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 PCS in one week |
| Features: | Resin+Diamond + Metal | Oem: | Available |
|---|---|---|---|
| Wheel Thickness: | 1-2 Inches | Size: | Various Sizes Available |
| Max Operating Speed: | Customized | Max Rpm: | Customized |
| Speed: | 6000-12000 RPM | Thickness: | 10 Mm,5~300mm |
| Ease Of Use: | Easy | Material: | Resin Bond Diamond Wheels |
| Abrasive Material: | Diamond | Abrasion Resistance: | High |
| Maximum Speed: | 6000 RPM | Type: | Resin Bond Diamond Wheels |
| Wheel Hardness: | Soft/Medium/Hard | ||
| Highlight: | 4A2 Resin Bond Diamond Grinding Wheels,Machining Resin Bond Diamond Grinding Wheels |
||

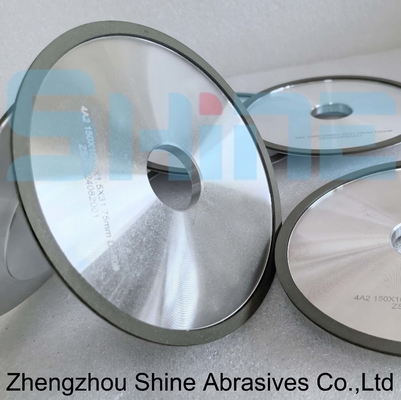

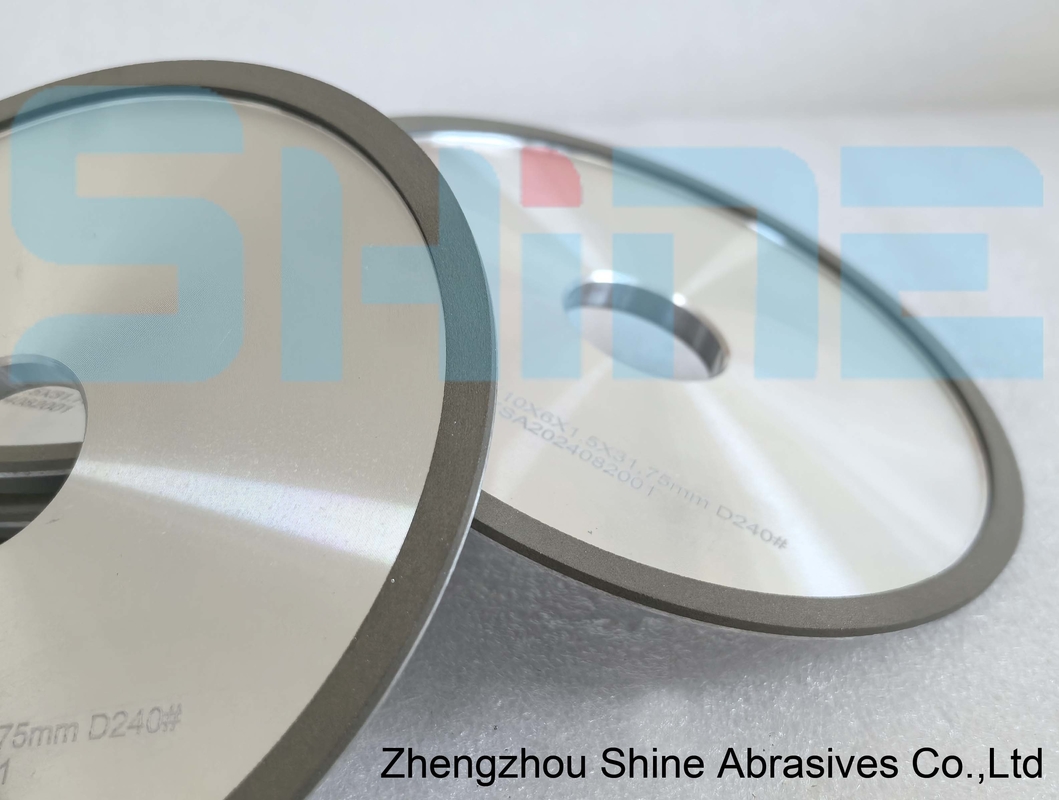

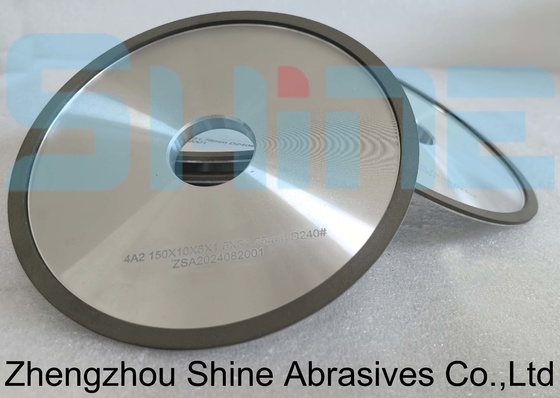

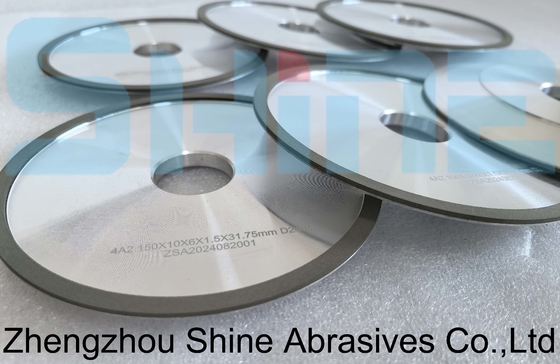

Shine Abrasive 4A2 is a diamond grinding wheel grinding in Grinding of hard brittle materials and the ideal of hard alloy tools, not only High efficiency, high accuracy, and good roughness, abrasive consumption, long Service life, and can also improve the working conditions. It is used for sharpening and finishing of front surface of multiple-blade tools. the rim layer is made of synthetic diamond powder in metal,resin or vitrified bonds.
| D(mm) | W(mm) | X(mm) | H(mm) | E(mm) | J(mm) |
| 50 | 3 .4 | 1.2.3.4 | up on reques | 6 | 20 |
| 5 .6 | 6 | 20 | |||
| 75 | 3 .4 | 6 | 45 | ||
| 5 .6 | 6 | 70 | |||
| 100 | 3 .4 | 6 | 70 | ||
| 5 .6 | 6 | 70 | |||
| 125 | 3 .4 | 7 | 70 | ||
| 5 .6 | 7 | 88 | |||
| 8 .10 | 7 | 88 | |||
| 150 | 3 .4 | 9 | 98 | ||
| 3 .4 | 9 | 98 | |||
| 8 .10 | 9 | 98 | |||
| 175 | 5 .10 | 10 | 107 |
Main Features
High grinding efficiency
Good shape keeping
Good surface quality and consistency of dimension of the Workpiece
High durability and long life
