Welcome to the world of Diamond and CBN Industrial Tools-Zhengzhou Shine Abrasives Co.,Ltd from China.
 |
| Place of Origin: | China |
| Brand Name: | Shine Abrasives |
| Certification: | ISO |
| Model Number: | 4V2 1A1 14A2 |
| Minimum Order Quantity: | 2 pcs |
|---|---|
| Price: | FOB |
| Packaging Details: | one in paperbox |
| Delivery Time: | 5 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 PCS in one week |
| Wheel Type: | Straight | Structure: | Customized |
|---|---|---|---|
| Wheel Performance: | Varies | Max Operating Speed: | Customized |
| Life Span: | Long | Finish: | Smooth |
| Abrasion Resistance: | High | Wheel Hole Size: | 0.5-2 Inches |
| Oem: | Available | Abarasive Material: | Diamond |
| Wheel Hardness: | Varies | Wheel Quality: | High |
| Wheel Shape: | Flat/Cup | Warranty: | Customized |
| Heat Resistance: | High | ||
| Highlight: | 150D Resin Bond Diamond Grinding Wheel,1FF1 Resin Bond Diamond Grinding Wheel |
||

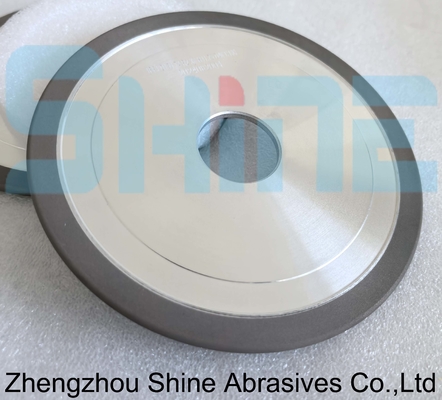

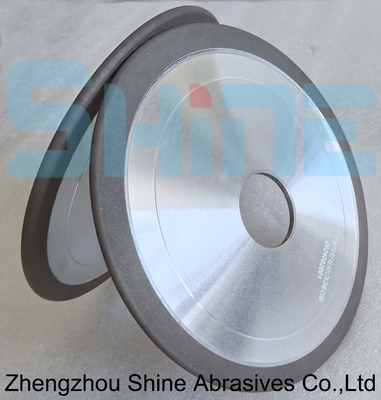

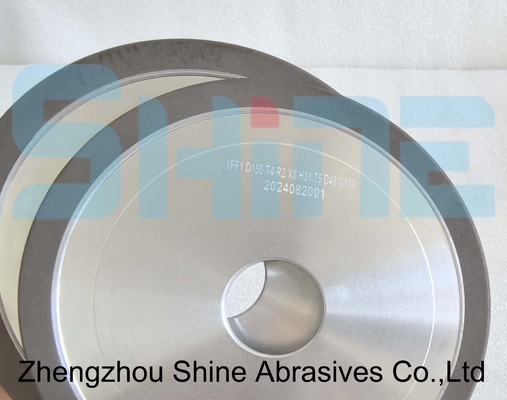

Shine Abrasives 1FF1 resinoid bond CBN wheel is mainly used for surface grinding ,cylindrical grinding of hand carbide measuring tools ,cutting tools,moulds and also for plunge-cut grinding as well as for grinding. Mainly used for the grinding of circular saw blade, disc saw, chainsaw,bandsaw , etc.
| Shape | D(mm) | T(mm) | H(mm) | X(mm) | W(mm) |
| 1FF1 | 100 | 25-40 | 16,20,31.75,32 | 2-6 | 3-10 |
| 125 | 25-40 | 16,20,31.75,32 | 2-6 | 3-10 | |
| 150 | 25-40 | 16,20,31.75,32 | 2-6 | 3-10 | |
| We can customize the grinding wheel based on your grinding wheel drawings and model size information. | |||||
Product Features:
1. Uniform diamond powder, high wear resistance;
2. Good stability, the diamond powder is not easy to come off. Resin diamond wheel is less wear and tear in the processing, long use life, high grinding ratio;
3. High grinding efficiency, wide range of applications. Can be processed a variety of high hardness materials, especially for the materials that the ordinary abrasive wheel is hard to process it;
