Welcome to the world of Diamond and CBN Industrial Tools-Zhengzhou Shine Abrasives Co.,Ltd from China.

|
| Place of Origin: | China |
| Brand Name: | Shine Abrasives |
| Certification: | ISO |
| Model Number: | 4V2 1A1 14A2 |
| Minimum Order Quantity: | 2 pcs |
|---|---|
| Price: | FOB |
| Packaging Details: | one in paperbox |
| Delivery Time: | 5 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 PCS in one week |
| Wheel Face Width: | Varies | Country Of Origin: | China/USA/Europe |
|---|---|---|---|
| Cbn Rim Size: | 1.3x10mm | Wheel Grade: | Varies |
| Type: | Abrasive Pad | Cutting Speed: | High |
| Viscosity: | As Required | Concentration: | High, Medium, Low |
| Wheel Concentration: | Glass Edge Medium Grinding | Bonding Agent: | Resin,Vitrified |
| Heat Resistance: | High | Wheel Arbor Hole: | Varies |
| Maximum Operating Speed: | 6000-12000 RPM | Abrasive Material: | Diamond |
| Grain Size: | Fine | ||
| Highlight: | 4A2 Resin Bond Diamond Wheels,Cutting Tools Resin Bond Diamond Wheels,Face Grinding Resin Bond Diamond Wheels |
||

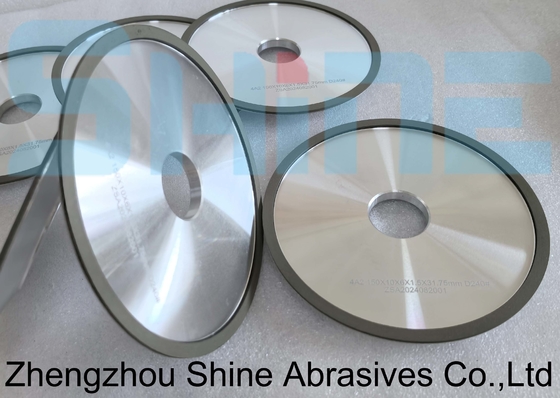

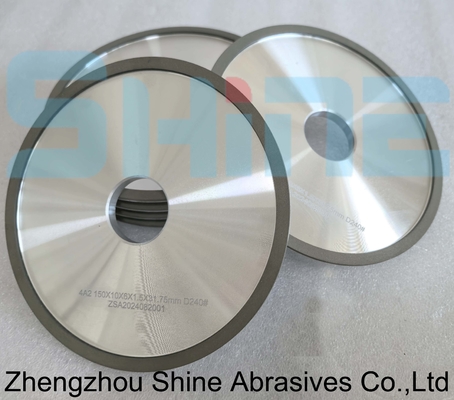

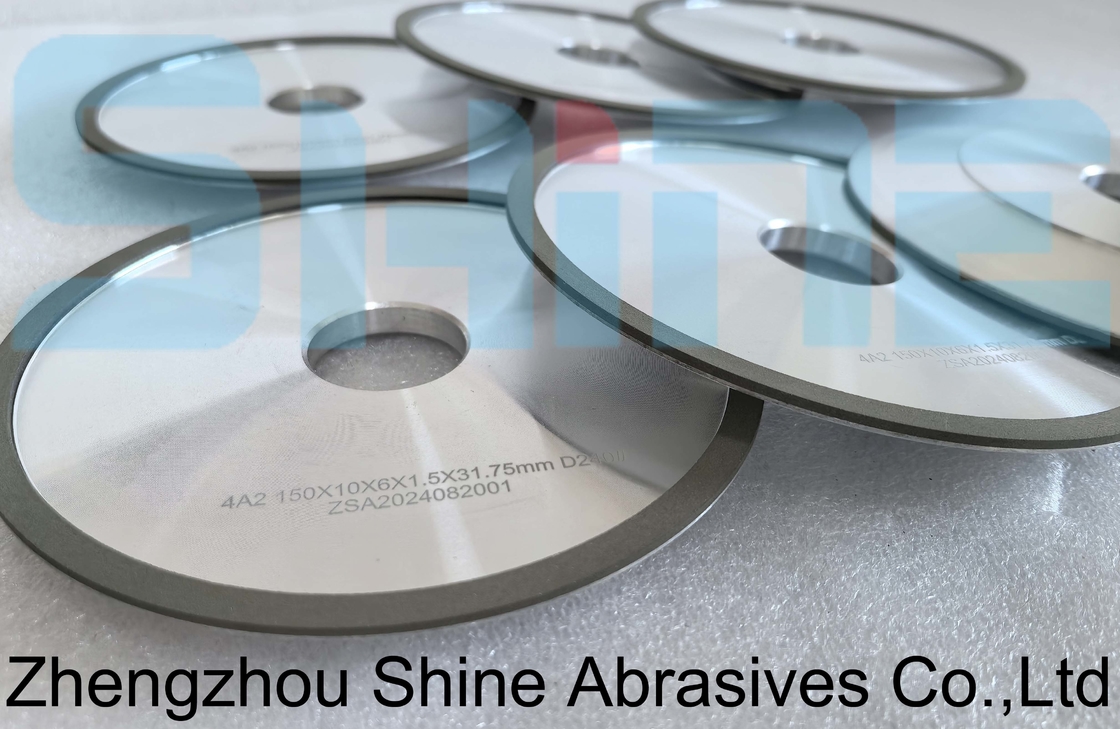

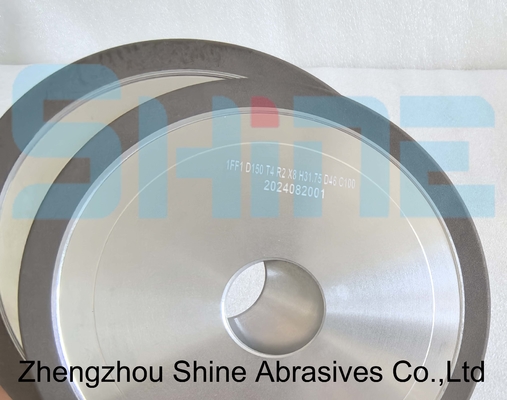

Shine Abrasives Resin bond is the most common choice in Diamond and CBN super-abrasives wheels. Resin bond diamond grinding wheel is mainly used for machining tungsten carbide cutting tools, ceramic ,magnetic materials, silicon ,glass ,quartz and thermal spraying alloy ,etc
| Shape | D(mm) | T(mm) | H(mm) | X(mm) | W(mm) |
| 4A2 | 100 | 25-40 | 16,20,31.75,32 | 2-6 | 3-10 |
| 125 | 25-40 | 16,20,31.75,32 | 2-6 | 3-10 | |
| 150 | 25-40 | 16,20,31.75,32 | 2-6 | 3-10 | |
| We can customize the grinding wheel based on your grinding wheel drawings and model size information. | |||||
Advantage:
1, Increased feed rates
2, Nice shaped
3, No need dressing tools
4, Less heat occurs
5, Excellent dynamic balance control.
6, Can cut superhard workpiece like natural diamond,gemstones.
