Welcome to the world of Diamond and CBN Industrial Tools-Zhengzhou Shine Abrasives Co.,Ltd from China.
 |
| Place of Origin: | China |
| Brand Name: | Shine Abrasives |
| Certification: | ISO |
| Model Number: | 4V2 1A1 14A2 |
| Minimum Order Quantity: | 2 pcs |
|---|---|
| Price: | FOB |
| Packaging Details: | one in paperbox |
| Delivery Time: | 5 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 PCS in one week |
| Features: | Long Life High Performance | Cbn Rim Size: | 15x10mm |
|---|---|---|---|
| Abrasive Section: | 10*10mm,15*10mm | Diamond Rim Size: | 30x10 |
| Max Speed: | Standard | Type: | Grinding Wheels |
| Wheel Hardness: | Soft, Medium, Hard | Grit Size: | Coarse, Medium, Fine, Super Fine |
| Abrasive: | Diamond | Industrial: | Glass, Ferrites And More |
| Maximum Operating Speed: | 6,000 To 10,000 RPM | Body: | Steel |
| Coolant Required: | Yes | Bond: | Metal |
| Arbor Hole: | 22mm,25mm | ||
| Highlight: | 3V1 metal bond diamond grinding wheel,150MM metal bond diamond grinding wheel |
||

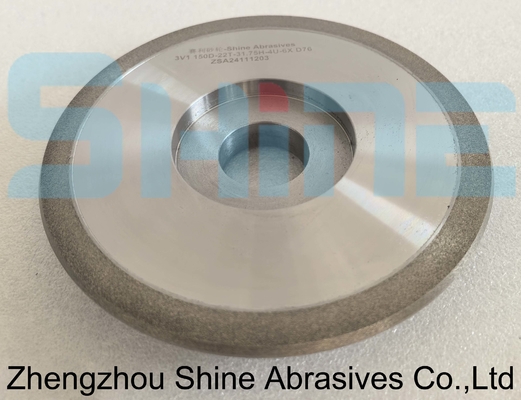

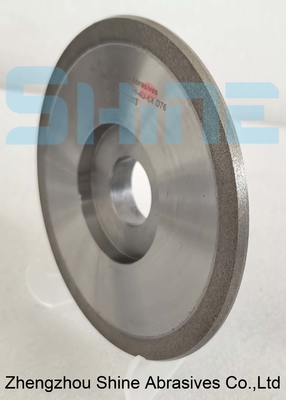

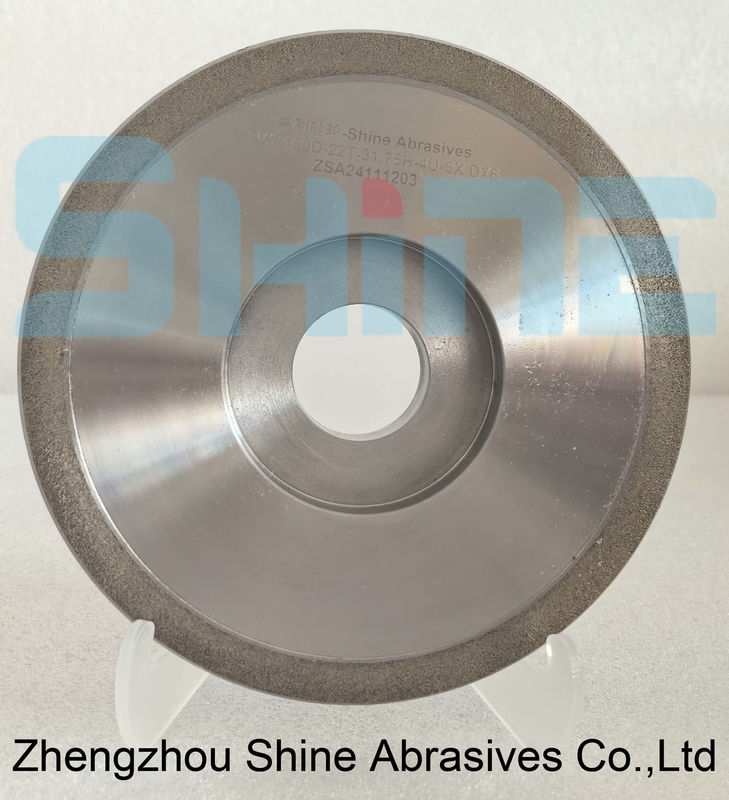

Shine Abrasives metal bond diamond grinding wheel for solid carbide drill bits step grinding is a specialized tool designed for precision grinding of solid carbide drill bits, particularly those with stepped or tapered geometries. Here are the key features, applications, and advantages of using metal bond diamond wheels for this purpose.
| Wheel shape: | 3V1 |
| Wheel diameter: | 150mm |
| Wheel bore: | 31.75mm |
| Diamond grit: | D64 |
| others sizes are available made as customized. | |
Advantages:
High Material Removal Rate:
Metal bond diamond wheels can efficiently grind hard materials like solid carbide, providing a high material removal rate while maintaining precision.
Durability and Longevity:
The robust metal bond structure allows for extended wheel life, reducing the frequency of wheel replacements and associated downtime.
Contact Person: Lenny Li
Tel: 008615003895611
