Welcome to the world of Diamond and CBN Industrial Tools-Zhengzhou Shine Abrasives Co.,Ltd from China.
 |
| Place of Origin: | China |
| Brand Name: | Shine Abrasives |
| Certification: | ISO |
| Model Number: | 4V2 1A1 14A2 |
| Minimum Order Quantity: | 2 pcs |
|---|---|
| Price: | FOB |
| Packaging Details: | one in paperbox |
| Delivery Time: | 5 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 PCS in one week |
| Bond Type: | Resin | Hardness Grade: | Medium |
|---|---|---|---|
| Arbor Size: | 1 Inch | Material: | Diamond&CBN |
| Bore: | Customized | Wheel Type: | Straight |
| Customized Support: | OEM, ODM, OBM | Process: | Process |
| Size: | Customized | Bonding Agent: | Resin |
| Arbor Hole: | Customized | Warranty: | 1 Year |
| Application: | Grinding | Color: | Green, Red |
| Abrasive Material: | Diamond | ||
| Highlight: | Oil Drilling Tools Grinding Wheel,1A1 Resin Bond Grinding Wheel,PDC Drill Bits Grinding Wheel |
||

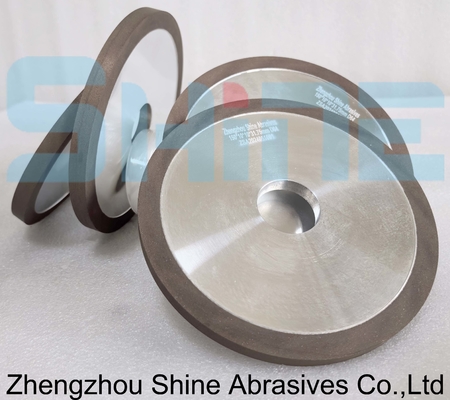

Resin grinding wheel belongs to resin bond diamond grinding wheel, which is mainly used for polishing materials such as alumina, zirconia ceramics, and cemented carbide. It is suitable for various large grinders at home and abroad, and specific specifications are customized. It is mainly used for lens polishing. This product has stable quality, sharpness, easy trimming, not easy to clog, and good polishing effect.
| Type | 1A1 Flat resin bond diamond grinding wheel |
| Concentration | 50%,75%,125%,150% |
| Mesh |
46#,60#,80#,100#,120#(coarse grinding); 120#,150#,180#,200#,240#(medium grinding);
280#,320#,400#,500#,600#(fine grinding);
800#,1000#,1200#,1500#,2000#,3000#(polishing)
|
| Specification |
D75-H10-T5-X10 D150-H19-X5-T5 D125-T10-X10-H20/31.75 D100-T10-X10-H20/31.75
D175-H127-X4-T5 D250-H40-X10-T3
D300-H127-X10-T40 D350-H127-T20-X10
D400-H127-T40-X10 D500-H203-X10-T32
Specification sizes can be customized
|
| Application | ard alloy,high alumina porcelain,optical glass agate gemstone, semiconductor material,ceramics,stone,etc |
Resin bond diamond grinding wheel is suitable for grinding metal and non-metal hard and brittle materials with low iron content,such as cemented carbide,high alumina porcelain, optical glass, agate gemstone, semiconductor material, ceramics, stone, etc.
