Welcome to the world of Diamond and CBN Industrial Tools-Zhengzhou Shine Abrasives Co.,Ltd from China.
 |
| Place of Origin: | China |
| Brand Name: | Shine Abrasives |
| Certification: | ISO |
| Model Number: | 4V2 1A1 14A2 |
| Minimum Order Quantity: | 2 pcs |
|---|---|
| Price: | FOB |
| Packaging Details: | one in paperbox |
| Delivery Time: | 5 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 PCS in one week |
| Wheel Structure: | Single Layer | Applacation: | Dressing |
|---|---|---|---|
| Hole Size: | Customized | Shape: | Cylindrical |
| Abrasive Type: | Diamond | Abrasive Material: | Diamond |
| Body: | Steel | Type: | Grinding Wheels |
| Packing: | Packed In Cartons Or Others | Wheel Thickness: | 1/4-1 Inch |
| Size: | Required | Wheel Hardness: | Soft/Medium/Hard |
| Radius: | 4mm | Usage: | For Metal, Ceramic, And Other Hard Materials |
| Coolant Type: | Dry, Wet | Feature: | Durable |
| Max Speed: | 13,000 RPM | Max Rpm: | 6,000 |
| Bonding Material: | Metal | Compatibility: | Metal, Concrete, Stone |
| Max Working Speed: | High | Abrasive: | Metal |
| Durability: | High | Cbn Rim Size: | 15x10mm |
| Grit: | Customized | Wheel Type: | Straight/Cup |
| Application: | Grinding And Polishing Metal Surfaces | ||
| Highlight: | Ceramic Resin Cutting Wheel,Tungsten Resin Cutting Wheel,Stone Resin Cutting Wheel |
||

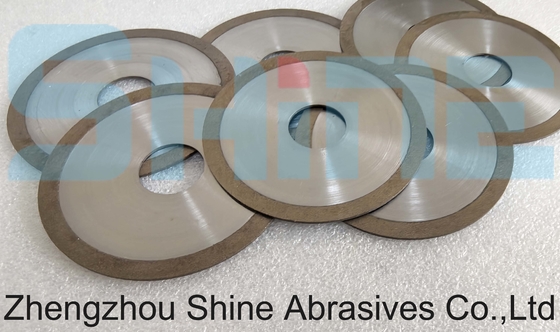

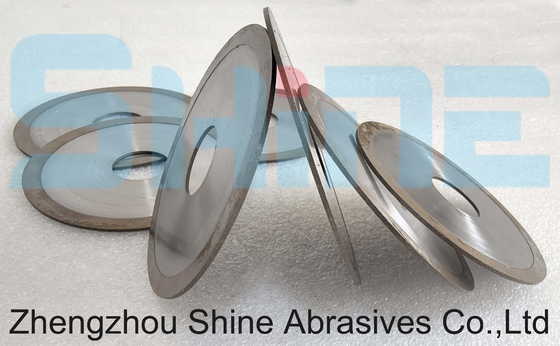

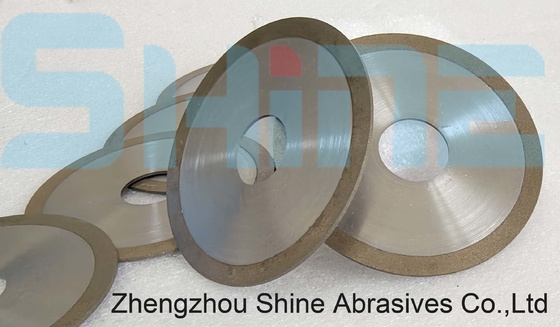

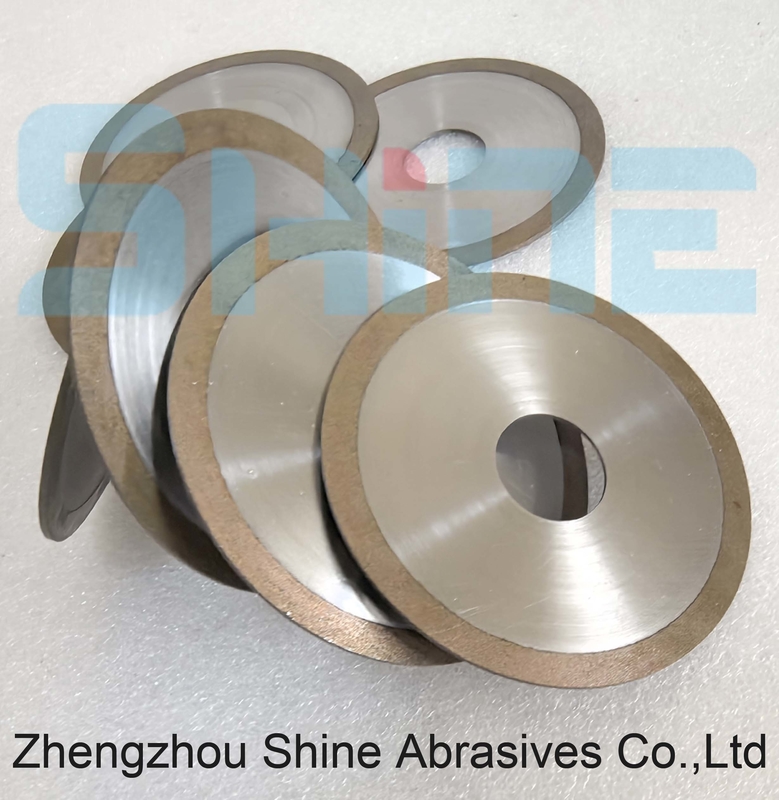

Shine Abrasives 1A1R metal slicing has the characteristics of high precision, multifunctionality, efficiency, high quality, stability, environmental protection, safety, and economy, and is suitable for various high-precision cutting needs.Used for cutting materials such as stainless steel and titanium alloys,manufacturing surgical instruments and implants.
| Diameter (D) | Abrasive Thickness (T/U) | Hole Diameter (H) | Abrasive Width (X) |
| 60, 75, 80 | 0.2, 0.3, 0.5, 0.6 | 10, 20 | 5 |
| 100 | 0.5, 0.6, 0.8, 1.0, 1.2 | 10, 20, 22, 31.75, 32 | 5, 10 |
| 125 | 0.8, 1.0, 1.2, 1.5 | 20, 22, 31.75, 32 | 5, 10 |
| 150 | 0.8, 1.0, 1.2, 1.5 | 20, 22, 31.75, 32 | 5, 10 |
| 180 | 0.8, 1.0, 1.2, 1.5 | 20, 22, 31.75, 32 | 5, 10 |
| 200 | 1.0, 1.2, 1.5, 1.6 | 20, 22, 31.75, 32 | 5, 10 |
| 250 | 1.0, 1.2, 1.5, 1.6, 1.8, 2.0 | 20, 22, 31.75, 32 | 5, 10 |
| 300 | 1.2, 1.5, 1.6, 1.8, 2.0 | 20, 22, 31.75, 32 | 10 |
| 350 | 1.5, 1.6, 1.8, 2.0, 2.2, 2.6, 3.0 | 20, 22, 31.75, 32 | 10 |
| 400 | 1.5, 1.6, 1.8, 2.0, 2.2, 2.6, 3.0 | 20, 22, 31.75, 32 | 10 |
Other sizes are available upon request.
The characteristics of 1A1R metal slices are mainly reflected in the following aspects:
1. ** Efficiency**
Fast utting: Efficient cutting speed improves production efficiency.
Automation Integration * *: Can be integrated with automation equipment to achieve continuous production.
2. ** High quality cutting**
Low heat affected zone: During the cutting process, the heat affected zone is small, reducing the loss of material properties.
* * No burrs * *: The cutting edge is free of burrs, reducing subsequent processing.
3. ** Equipment stability**
High reliability: The equipment has high stability and is suitable for long-term continuous operation.
Easy to maintain: The structural design is simple and easy to maintain.
