| Place of Origin: | China |
| Brand Name: | Shine Abrasives |
| Certification: | ISO |
| Model Number: | 4V2 1A1 14A2 1E1 |
| Minimum Order Quantity: | 2 pcs |
|---|---|
| Price: | FOB |
| Packaging Details: | one in paperbox |
| Delivery Time: | 5 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 PCS in one week |
| Usage: | Dry Or Wet | Wheel Shape: | Flat/Cylindrical |
|---|---|---|---|
| Manufacturer: | XYZ Company | Arbor Size: | 5/8 Inch |
| Diameter: | 4 Inches | Grinding Wheel Type: | Grinding Wheels |
| Country Of Origin: | China | Max Load: | Customized |
| Wheel Type: | Straight/Cup | Cbn Rim Size: | 15x10mm |
| Bond Type: | Metal | Compatibility: | Angle Grinders |
| Material: | Diamond | Benefits: | Fast Material Removal And Smooth Finish |
| Shape: | Cup |

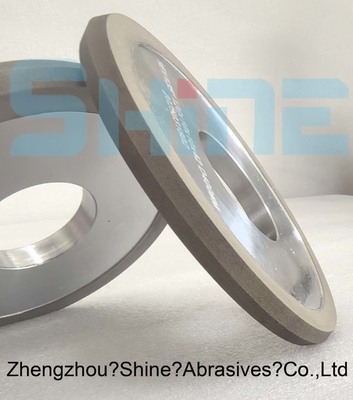

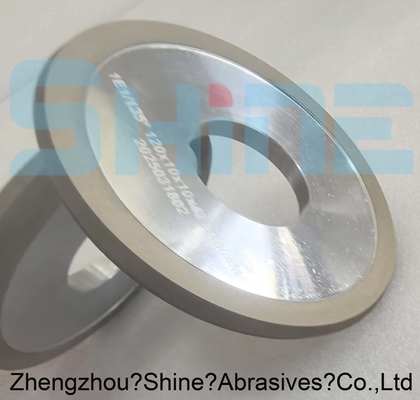

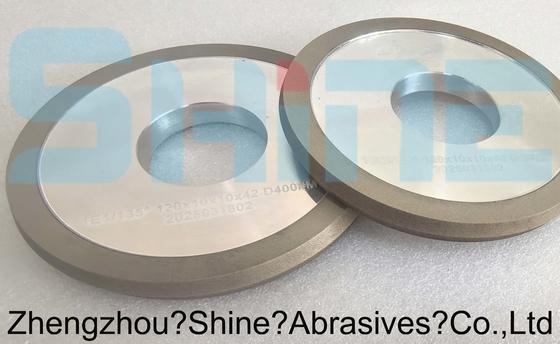

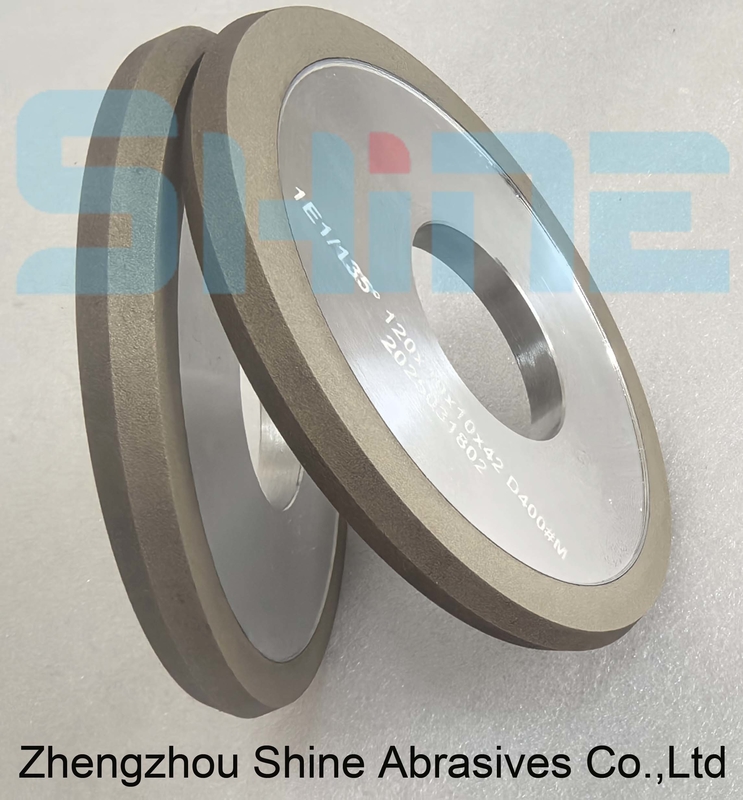

Shine Abrasives the 1E1 shape diamond wheel is a specific type of grinding wheel characterized by its unique profile, typically featuring a flat peripheral edge with a beveled or angled inner edge.This design allows for various grinding applications, particularly where precision and access to tight spaces are required.
| Type | 1E1 Flat metal bond diamond grinding wheel |
| Concentration | 50%,75%,125%,150% |
| Mesh |
46#,60#,80#,100#,120#(coarse grinding); 120#,150#,180#,200#,240#(medium grinding);
280#,320#,400#,500#,600#(fine grinding);
800#,1000#,1200#,1500#,2000#,3000#(polishing)
|
| Specification |
D75-H10-T5-X10 D150-H19-X5-T5 D125-T10-X10-H20/31.75 D100-T10-X10-H20/31.75
D175-H127-X4-T5 D250-H40-X10-T3
D300-H127-X10-T40 D350-H127-T20-X10
D400-H127-T40-X10 D500-H203-X10-T32
Specification sizes can be customized
|
| Application | ard alloy,high alumina porcelain,optical glass agate gemstone, semiconductor material,ceramics,stone,etc |
Applications:
Precision Grinding:
Used for the precision grinding of hard materials, including metals, ceramics, and composites. Its shape allows for accurate shaping and finishing of parts.
Tool Sharpening:
Ideal for sharpening cutting tools, such as drills and end mills, as it provides a precise edge without overheating the tool.
Jewelry and Die Making:
Commonly used in the jewelry industry for grinding and shaping gemstones, as well as in die making where fine tolerances are essential.
